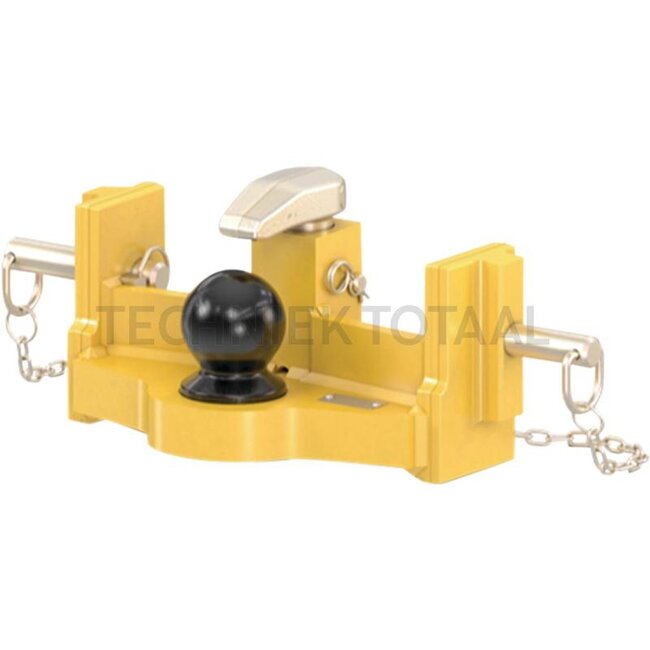

Walterscheid Inner part ball hitch 80 mm with locking

Replaces: 8004858

Technical data:

• Colour: Black
• Load capacity (kg): 3000
• Ball Ø (mm): 80
• D-value (kN): 102
• Detent pin Ø (mm): 25
• Rail width (mm): 390
• Description: This product is a ball support with two locking bolts. The hitch ball 80 dimensions and areas of application comply with ISO 24347, VO (EU) 2015/208 and UN ECE R147, class a80. The device is normally coupled and locked. Furthermore, the product is only permitted for connection with ball couplings 80 in accordance with ISO 24347 and UN ECE R147, class b80. The inner part can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable hold-down device can be adjusted without tools
• Assembly notes: Suitable for connection to ball hitches 80 according to ISO 24347. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times. In combination with KU345 and KU346 series hitch supports, the existing locking pins 770AB8389 140 x 25 mm must be replaced by longer locking pins 770AB930 (25 x 202 mm).
• To fit: Various manufacturers
• Guide width (mm): 32
• Lock: ball 80

Suitable for:

Case IH: Magnum 225 (1/06-), Magnum 250 (1/06-), Magnum 280 (1/06-), Magnum 310 (1/06-), Magnum 335, Magnum 235 Tier 4a, Magnum 235 Tier 4a CVT, Magnum 260 Tier 4a, Magnum 260 Tier 4a CVT, Magnum 290 Tier 4a, Magnum 290 Tier 4a CVT, Magnum 315 Tier 4a, Magnum 315 Tier 4a CVT, Magnum 340 Tier 4a, Magnum 340 Tier 4a CVT/CVX, Magnum 340 Tier 4b CVT/CVX (4/14-), MX 180 Magnum, MX 200 Magnum, MX 210 Magnum, MX 220 Magnum, MX 230 Magnum, MX 240 Magnum, MX 255 Magnum, MX 270 Magnum, MX 285 Magnum, Optum 250, Optum 270, Optum 300, Puma 140 (1/07-11/09), Puma 150 CVX, Puma 165 CVX (11/08-), Puma 185 CVX (12/10-), Puma 200 CVX (12/10-)

Claas: Axion 800, Axion 810, Axion 830, Axion 840, Axion 850, Axion 870, Axion 920, Axion 930, Axion 940, Axion 950, Xerion 4500, Xerion 5000

Deutz-Fahr: 6150 Agrotron, 6150.4 Agrotron, 6155 Agrotron, 6160 Agrotron, 6160.4 Agrotron, 6165 Agrotron, 6165.4 Agrotron, 6175 Agrotron, 6175.4 Agrotron, 6180 Agrotron, 6185 Agrotron, 6190 Agrotron, 6205 Agrotron, 6215 Agrotron, 6120.4 TTV Agrotron, 6130.4 TTV Agrotron, 6140 TTV Agrotron, 6140.4 TTV Agrotron, 6150.4 TTV Agrotron, 6155 TTV Agrotron, 6155.4 TTV Agrotron, 6160 TTV Agrotron, 6160.4 TTV Agrotron, 6165 TTV Agrotron, 6165.4 TTV Agrotron, 6175 TTV Agrotron, 6175.4 TTV Agrotron, 6180 TTV Agrotron, 6185 TTV Agrotron, 6190 TTV Agrotron, 6205 TTV Agrotron, 6210 TTV Agrotron, 6230 TTV Agrotron, 7210 TTV Agrotron, 7230 TTV Agrotron, 7250 TTV Agrotron, 9270 TTV Agrotron, 9290 TTV Agrotron, 9310 TTV Agrotron, 9340 TTV Agrotron, Agrotron 120, Agrotron 150, Agrotron K 90, Agrotron K 100, Agrotron K 110, Agrotron K 120, Agrotron M 410, Agrotron M 420, Agrotron M 600, Agrotron M 610, Agrotron M 615, Agrotron M 620, Agrotron M 625, Agrotron M 640, Agrotron M 650, Agrotron New 130, Agrotron New 150.7, Agrotron New 165.7, Agrotron New 180, Agrotron New 180.7, Agrotron TTV 630

Fendt: Fendt 712 (Typ 724), Fendt 714 (Typ 738), Fendt 716 (Typ 739), Fendt 718 (Typ 740), Fendt 720 (Typ 741), Fendt 722 (Typ 742), Fendt 724 (Typ 743), Fendt 924 (Typ 941), Fendt 927 (Typ 942), Fendt 930 (Typ 943), Fendt 933 (Typ 944), Fendt 936 (Typ 945), Fendt 939 (Typ 946), Fendt 942 (Typ 961), Fendt 1149 MT, Fendt 1154 MT, Fendt 1159 MT, Fendt 1165 MT

John Deere: 6100D, 6115D, 6130D, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6090MC, 6R 110, 6R 120, 6R 130, 6R 140, 6R 145, 6R 150, 6R 155, 6R 165, 6R 175, 6R 185, 6R 195, 6R 215, 6R 230, 6R 250, 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6135R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6195R, 6210R, 6215R, 6230R, 6250R, 7200R, 7210R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8400R, 6100, 6010, 6020, 6120, 6220, 6320, 6420, 6420S, 6520, 6620, 6820, 6920, 6920S, 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR, 6115, 6140, 7720, 7820, 7920, 7230, 7430 PR, 7530 PR, 7630, 7730, 7830, 7930, 7210, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8520, 8130, 8230, 8330, 8430, 8530

Lamborghini: Spark 120, Spark 130, Spark 140, Spark 155, Spark 155.4, Spark 165, Spark 165.4, Spark 175, Spark 175.4, Spark 185, Spark 205, Spark 215

Massey Ferguson: 7S.155, 7S.165, 7S.180, 7S.190, 7S.210, 8S.205, 8S.225, 8S.245, 8S.265, 8S.285, 8S.305, 7715/S, 7719/S, 7720/S, 7722/S, 7724/S, 7726/S, 8727, 8730, 8732, 8735, 8737

New Holland: T7.165, T7.175 (4/14-), T7.190 (4/14-), T7.195, T7.210 (4/14-), T7.215, T7.230 (4/14-), T7.245 (4/14-), T7.260 (4/14-), T7.275, T7.290, T7.315, T7.175 Autocommand (4/14-), T7.190 Autocommand (4/14-), T7.210 Autocommand (4/14-), T7.225 Autocommand (4/14-), T7.230 Autocommand (4/14-), T7.245 Autocommand (4/14-), T7.260 Autocommand (4/14-), T7.270 Autocommand (4/14-), T8.275 Tier 4a, T8.275 Tier 4a CVT, T8.300 Tier 4a, T8.300 Tier 4a CVT, T8.320 Tier 4b CVT (4/14-), T8.320 Tier 4b PST (4/14-), T8.330 Tier 4a, T8.330 Tier 4a CVT, T8.350 Tier 4b CVT (4/14-), T8.350 Tier 4b PST (4/14-), T8.360 Tier 4a, T8.360 Tier 4a CVT, T8.380 Tier 4b CVT (4/14-), T8.380 Tier 4b PST (4/14-), T8.390 Tier 4a, T8.390 Tier 4a CVT, T8.410 Tier 4b CVT (4/14-), T8.410 Tier 4b PST (4/14-), T8.420 Tier 4a CVT, T8.420 Tier 4a CVT (2/13-), T8020, T8030, T8040, T8050, TG210, TG215, TG230, TG245, TG255, TG285, TG305

Steyr: 8110, 8130, 6270 Terrus, 6300 Terrus

Valtra-Valmet: N104, N114, S274, S294, S324, S354, S374, S394, T144, T154, T174, T194, T214, T234, T254, T145, T155, T175, T195, T215, T235, T255
