Deutz-Fahr 5100 tractor parts & technical data

A compact selection for the Deutz-Fahr 5100: more than 50 parts that belong to this 5 series model, such as trailer couplings, lighting and electrics.

59 parts found for Deutz-Fahr 5100
Show:
Feed pump Deutz-Fahr series 5, 6 Agrotron, Hürlimann XM, Same Virtus
€269,83 €223,00 €248,24 €205,16
You save 8%
Injector Deutz-Fahr, Hürlimann, Lamborghini, Same
€647,73 €535,31 €595,91 €492,49
You save 8%
Walterscheid Piton Fix rail width 330 mm, locking pin Ø 25 mm, 3000 kg, 89,3 kN
Walterscheid
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load capacity: 3000 kg. D-value: 89.3 kN. Colour: Black. Description: This product is a ... More
Rail width: 330 mm. Detent pin Ø: 25 mm. Guide width: 32 mm. Load cap...
€1.748,75 €1.445,25 €1.382,58 €1.142,63
You save 21%
Walterscheid Piton Fix rail width 309 mm, locking pin Ø 22 mm, 3000 kg, 89,3 kN
Walterscheid
Rail width: 309 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load capacity: 3000 kg. D-value: 89.3 kN. Colour: Black. Description: This product is a ... More
Rail width: 309 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Load cap...
€1.723,50 €1.424,38 €1.362,61 €1.126,13
You save 21%
Oil seal crankshaft rear 105 x 125 x 13 mm
Outer Ø: 125 mm. Width: 13 mm. Inner Ø: 105 mm. More
Outer Ø: 125 mm. Width: 13 mm. Inner Ø: 105 mm.
€58,35 €48,22 €53,68 €44,37
You save 8%
Spring fender right SAME, Hürlimann, Deutz-Fahr, Lamborghini
€89,02 €73,57 €81,90 €67,68
You save 8%
Walterscheid Top drawbar rail 311 mm, pin Ø 22 mm, coupling pin 38 mm
Walterscheid
Rail width: 311 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecting pin: 38 mm. Load capacity: 2000 kg. D-value: 88,5 kN. Colour: Black. Descript... More
Rail width: 311 mm. Detent pin Ø: 22 mm. Guide width: 30 mm. Connecti...
€2.305,12 €1.905,06 €1.822,44 €1.506,15
You save 21%
Oil drain valve M18 x 1,5
Thread: M18 x 1.5. More
Thread: M18 x 1.5.
€68,16 €56,33 €62,71 €51,82
You save 8%
Showing 49 - 59 of 59

What parts there are for the Deutz-Fahr 5100

The Deutz-Fahr 5100 often spends its days in front of a trailer or a baler, and that shows in the parts available for it. Among the more than 50 replacement parts on this page you will therefore find plenty of hitching hardware. They come from Walterscheid, GRANIT, Sauermann, HELLA and GRAMMER.

At the rear

There are ball drawbars, ball hitches, top drawbars and Piton Fix pins, together with adapter plates and support plates for building up the hitch. Separate inner parts are available as well.

One thing not to forget with a ball hitch: keep the ball lightly greased as the coupling maker specifies. A dry ball and cup wear quickly, and a ball with a flat spot or groove needs replacing. Check the locking every time you hitch up. A ball that has not locked properly is something you only notice when it is too late.

Cooling, charge air and fuel

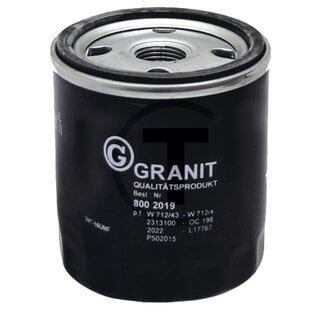

Around the engine there are radiator hoses, such as the bottom hose, an air hose to the intercooler, a feed pump and an engine oil filter. If you find an oily film on the intercooler air hose, oil is travelling with the charge air. Clean the hose and clamps, check whether the hose has gone soft, and refit it with new clamps. After replacing the feed pump, bleed the fuel system before you start the engine. When you change the oil filter, wipe a little clean oil on the new seal and tighten the filter by hand only.

Fenders and lights

For the fenders there are fender brackets and springs. At the back you will find an LED tail light and an indicator, handy when the old lens has been broken while manoeuvring. A broken fender spring lets the fender vibrate until it cracks around the mounting, so it is worth replacing promptly.

Choosing the part that fits your 5100

The rating plate is the first check. If it says 5100, you are on the right page. The 5100 belongs to the 5 Series from Deutz-Fahr, and each model in it has its own overview. The old part often carries a number, stamped or on a sticker, which you can compare with the parts on this page. With fender brackets and springs, note left or right too.

Two other models from the same series have their own page, for when there is more than one Deutz-Fahr on the farm:

The overview of every Deutz-Fahr model is on Deutz-Fahr parts.
