Deutz-Fahr AgroPrima 6.06 tractor parts & technical data

With more than 300 parts, the Deutz-Fahr AgroPrima 6.06 is well covered on this page. Trailer couplings, lighting and electrics are each grouped together.

318 parts found for Deutz-Fahr AgroPrima 6.06
Show:
Cylinder head bolt 210 mm engine Deutz FL912, FL913
Cylinder head bolt 210 mm engine Deutz FL912, FL913
Engine types: FL912, FL913. Dimensions: Length: 210 mm. Menke no.: 68008.
€24,41 €20,18

Injection nozzle Deutz-Fahr 2505-7505, D 40 L
Injection nozzle Deutz-Fahr 2505-7505, D 40 L
Type formula: DN0SD165, 0434250037. Bosch no.: 2580434250037. Menke no.: 54108.
€38,18 €31,55

Seal kit steering valve Deutz-Fahr
Seal kit steering valve Deutz-Fahr
Description: for control unit 04360630, 04378905, 04383202, 04383203.
€14,70 €12,15

O-ring hydraulic pump
O-ring hydraulic pump
€4,74 €3,92

Double hydraulic pump 19 + 11 cm³/rpm., taper 1:5 Ø 17 x 17
8%
Double hydraulic pump 19 + 11 cm³/rpm., taper 1:5 Ø 17 x 17
Output volume: 19 + 11 cc/rev. Drive shaft: Taper 1:5, Ø 17 x 17.
€348,29 €287,84 €320,43 €264,82

Gas strut door- or glass 200 N, 505 mm, stroke 81 mm
8%
Gas strut door- or glass 200 N, 505 mm, stroke 81 mm
suitable for: Tür-, Front- oder Heckscheibe. Newtons: 200. A: 505 mm. B: 365 mm....
€49,37 €40,80 €45,42 €37,54

PROBOSS Seat PROBOSS AS3520 Fendt, Deutz, Deutz-Fahr
2%
PROBOSS
Seat PROBOSS AS3520 Fendt, Deutz, Deutz-Fahr
To fit: Deutz V1. On-board voltage: 12 V. Upholstery type: Fabric. Seat contact ...
€1.986,12 €1.641,42 €1.953,33 €1.614,32

Protective ring front left lift arm 90 x 75 x 10 mm Deutz-Fahr
8%
Protective ring front left lift arm 90 x 75 x 10 mm Deutz-Fahr
Dimensions: 90 x 75 x 10 mm.
€33,59 €27,76 €30,90 €25,54

Gasket lift housing 240 x 300 mm Deutz-Fahr
8%
Gasket lift housing 240 x 300 mm Deutz-Fahr
Dimensions: 240 x 300 mm.
€67,42 €55,72 €62,03 €51,26

Bush right lift arm 74 x 80 x 85 mm Deutz-Fahr
8%
Bush right lift arm 74 x 80 x 85 mm Deutz-Fahr
Dimensions: 74 x 80 x 85 mm.
€179,42 €148,28 €165,07 €136,42

Sealing ring piston 70 x 89 x 12 mm Deutz-Fahr
8%
Sealing ring piston 70 x 89 x 12 mm Deutz-Fahr
Dimensions: 70 x 89 x 12 mm.
€40,97 €33,86 €37,69 €31,15

Crank for clevis Ø 27 mm, thread M27 x 3 Deutz-Fahr
8%
Crank for clevis Ø 27 mm, thread M27 x 3 Deutz-Fahr
Dimensions: Ø = 27, Thread = M27 x 3 mm.
€424,88 €351,14 €390,89 €323,05

Lift rod 440 mm, M27 x 3, hole spacing 163 mm Deutz-Fahr
8%
Lift rod 440 mm, M27 x 3, hole spacing 163 mm Deutz-Fahr
Dimensions: Length = 440, Thread = M27 x 3, Hole spacing = 163 mm.
€328,03 €271,10 €301,79 €249,41

Yoke lift arm Ø 25,25 mm, thread M27 x 3 Deutz-Fahr
8%
Yoke lift arm Ø 25,25 mm, thread M27 x 3 Deutz-Fahr
Dimensions: Ø = 25.25, Thread = M27 x 3 mm.
€402,65 €332,77 €370,44 €306,15

Pin 25 x 105 mm Deutz-Fahr
8%
Pin 25 x 105 mm Deutz-Fahr
Dimensions: 25 x 105 mm.
€74,87 €61,88 €68,88 €56,93

Gas strut door-, for- or rear window 220 N, 502 mm Deutz-Fahr
8%
Gas strut door-, for- or rear window 220 N, 502 mm Deutz-Fahr
Newtons: 220. A: 502 mm. B: 250 mm. C: 10 mm. D: 10 mm. Form: 6. Menke no.: 5480...
€43,59 €36,02 €40,10 €33,14

Sealing ring lift shaft left 75 x 90 x 10 mm, NBR Deutz-Fahr
8%
Sealing ring lift shaft left 75 x 90 x 10 mm, NBR Deutz-Fahr
Dimensions: 75 x 90 x 10 mm. Material: NBR.
€37,94 €31,36 €34,90 €28,85

Push button switch main beam 12/24 V, button blue, Ø 30 mm
8%
Push button switch main beam 12/24 V, button blue, Ø 30 mm
Version: 12/24 V, Blue button, with lock, Ø 30 mm, 5 blade terminals 6.3 x 0.8 (...
€48,67 €40,22 €44,78 €37,01

Holder
Holder
€50,85 €42,03

Headlight left / right 12 / 24 V, H4, glass Ø 136 mm, built-in
8%
Headlight left / right 12 / 24 V, H4, glass Ø 136 mm, built-in
Bulb: 12V60/55W / H4, 24V75/70W / H4. Installation location: Left, right. Nomina...
€152,15 €125,74 €139,98 €115,68

Push button switch work lamp 12 / 24 V, button yellow, 4 blade terminals
8%
Push button switch work lamp 12 / 24 V, button yellow, 4 blade terminals
To fit as: Deutz-Fahr AgroCompact 3.30 V/F, 3.50, 3.50 S, 3.50 V/F, 3.70 V/F, 3....
€34,65 €28,64 €31,88 €26,35

HELLA Glass rear light left, 4 light functions, with red spare lens
HELLA
Glass rear light left, 4 light functions, with red spare lens
To fit as: Deutz-Fahr DX 3.10SC, 3.30, 3.50, 3.60, 3.65, 3.70, 3.80, DX 4.17, 4....
€18,79 €15,53

Brake pad set 90 x 15 x 70 mm, drive shaft and foot brake, Knott brake caliper
8%
Brake pad set 90 x 15 x 70 mm, drive shaft and foot brake, Knott brake caliper
To fit as: Deutz AgroPrima 4.31, 4.51, 4.56, 6.06, 6.16, AgroStar 4.61, 4.68, 4....
€38,94 €32,18 €35,82 €29,61

Flame glow plug 11 V, 20 A, thread M20 x 1,5 Deutz, Deutz-Fahr
8%
Flame glow plug 11 V, 20 A, thread M20 x 1,5 Deutz, Deutz-Fahr
To fit as: Deutz Intrac 6.30, 6.60, DX 3.60SC, 3.65SC, 3.70SC, 3.80SC, 3.90SC, 3...
€96,62 €79,85 €88,89 €73,46

HELLA Starter motor 12 V, 3,0 kW, 9 teeth, mounting Ø 89 mm, clockwise
23%
HELLA
Starter motor 12 V, 3,0 kW, 9 teeth, mounting Ø 89 mm, clockwise
€595,84 €492,43 €459,08 €379,41

Track rod telescopic axle, hydraulic steering A 1230 - 1740 mm
8%
Track rod telescopic axle, hydraulic steering A 1230 - 1740 mm
A: 1230 - 1740 mm. C: 20 - 22 mm. G: .
€741,22 €612,58 €681,92 €563,57

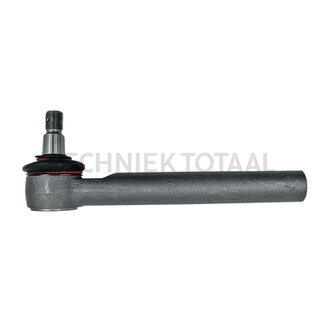

Ball joint 365 mm, M22 x 1,5, taper 24 - 26 mm
8%
Ball joint 365 mm, M22 x 1,5, taper 24 - 26 mm
A: 365 mm. C: M22 x 1,5 mm. D: M22 x 1,5 mm. E: 24 mm. F: 26 mm. Taper: 24 - 26 ...
€166,86 €137,90 €153,51 €126,87

Repair set brake cylinder DOT4 Deutz-Fahr
8%
Repair set brake cylinder DOT4 Deutz-Fahr
Medium: DOT4. Additional information: Without piston.
€46,06 €38,07 €42,38 €35,02

LUK Pilot bearing 20 x 52 x 15 mm
8%
LUK
Pilot bearing 20 x 52 x 15 mm
Dimensions: 20 x 52 x 15 mm.
€32,83 €27,13 €30,20 €24,96

Knott Industrietechnik Lock pin Deutz-Fahr AgroPrima, AgroXtra, AgroStar
Knott Industrietechnik
Lock pin Deutz-Fahr AgroPrima, AgroXtra, AgroStar
€9,79 €8,09

Repair set brake cylinder without piston Deutz AgroStar 4.61-6.61
8%
Repair set brake cylinder without piston Deutz AgroStar 4.61-6.61
Additional information: Without piston.
€48,28 €39,90 €44,42 €36,71

Bleed valve ATE version DOT4 Deutz
Bleed valve ATE version DOT4 Deutz
Medium: DOT4.
€16,03 €13,24

Bleed valve Knott version Deutz
Bleed valve Knott version Deutz
Description: Fits fixed caliper 71704068, 71704066, 71704069, 71704070.
€24,94 €20,61

Fixed caliper, complete without brake lining Knott bottom left, DOT 4
8%
Fixed caliper, complete without brake lining Knott bottom left, DOT 4
€745,84 €616,40 €686,17 €567,09

PTO shaft end piece 335 mm, 1 3/8" 6 spline, 540 rpm Deutz-Fahr
8%
PTO shaft end piece 335 mm, 1 3/8" 6 spline, 540 rpm Deutz-Fahr
Version: Length 335 mm, 1 3/8", 6 grooves, For 540 rpm.
€509,31 €420,92 €468,57 €387,24

VICTOR REINZ Crankshaft seal for Ø 65 x 85 x 10,5 mm engine FL912, FL913 Deutz-Fahr
8%
VICTOR REINZ
Crankshaft seal for Ø 65 x 85 x 10,5 mm engine FL912, FL913 Deutz-Fahr
€37,37 €30,88 €34,38 €28,41

VICTOR REINZ Crankshaft seal rear Fendt, Deutz-Fahr
8%
VICTOR REINZ
Crankshaft seal rear Fendt, Deutz-Fahr
€42,88 €35,44 €39,45 €32,60

Piston ring set 4 rings, Ø 100 mm Fendt, Deutz-Fahr
8%
Piston ring set 4 rings, Ø 100 mm Fendt, Deutz-Fahr
Dimensions: 4 rings, Ø 100 mm, 3 mm (trapezoidal ring) / 2.5 mm / 2.5 mm / 5 mm.
€43,73 €36,14 €40,23 €33,25

Cover engine Deutz FL812-FL913
Cover engine Deutz FL812-FL913
Engine types: FL912, FL913, FL812.
€12,56 €10,38

O-ring oil pump 14,5 x 3 mm Fendt, Renault, Deutz-Fahr
O-ring oil pump 14,5 x 3 mm Fendt, Renault, Deutz-Fahr
Dimensions: 14.5 x 3 mm.
€8,25 €6,82

Valve spring engine F2L912-F6L913, BF6L913 Deutz-Fahr, Fendt
Valve spring engine F2L912-F6L913, BF6L913 Deutz-Fahr, Fendt
Engine types: F2L912, F3L912, F4L912, F6L912, F4L913, F6L913, BF6L913.
€11,95 €9,88

Thrust washer rear thickness 2,94 mm Deutz-Fahr
Thrust washer rear thickness 2,94 mm Deutz-Fahr
Engine types: FL912. Dimensions: Thickness 2.94 mm.
€18,08 €14,94

Connecting rod bush Ø 35 mm Fendt, Deutz-Fahr
Connecting rod bush Ø 35 mm Fendt, Deutz-Fahr
Dimensions: Ø 35 mm.
€9,33 €7,71

Push rod Fendt, Deutz-Fahr
8%
Push rod Fendt, Deutz-Fahr
Engine types: FL912, FL913, FL812, F712.
€60,95 €50,37 €56,07 €46,34

Tank cap bayonet connection with ventilation, tank collar Ø 83 mm
8%
Tank cap bayonet connection with ventilation, tank collar Ø 83 mm
Filler neck Ø: 83 mm.
€81,95 €67,73 €75,39 €62,31

Valve cover bolt sealing ring nylon, Ø 16 x 8 mm, thickness 3,7 mm
Valve cover bolt sealing ring nylon, Ø 16 x 8 mm, thickness 3,7 mm
Engine types: FL712, FL812. Outer Ø: 16 mm. Form: Asymmetrical. Inner Ø: 8 mm. M...
€1,63 €1,34

Shim liner Top 1,1 mm, Ø 120 x 102,6 mm Fendt, Deutz-Fahr
Shim liner Top 1,1 mm, Ø 120 x 102,6 mm Fendt, Deutz-Fahr
Outer Ø: 120 mm. Form: A form. Inner Ø: 102,6 mm. Material: steel. Thickness: 1,...
€4,75 €3,93

Showing 193 - 240 of 318

Deutz-Fahr AgroPrima 6.06 parts

An AgroPrima 6.06 tends to stay on the farm for many seasons, and sooner or later the clutch, brakes and charging system need attention. This page carries more than 300 parts for the 6.06, from brands such as GRANIT, HELLA, ROCKINGER, LUK and MAHLE.

For the clutch there are clutch kits, thrust bearings and crankshaft seals. If you are splitting the tractor for a new clutch, change the thrust bearing and the seal while it is apart. A whining bearing or a seal that lets oil onto the plate will otherwise have you splitting it again before long. Look at the flywheel too. Scoring or blue heat marks mean the face needs machining before the new plate goes in.

Brakes and hydraulics

The braking side is covered by fixed calipers and bleed valves. After fitting a caliper, bleed the system starting from the furthest point and keep going until no more bubbles appear. A seized bleed valve is better replaced than forced, because one snapped off inside the caliper costs far more time. For the linkage there are sealing rings for the lift shaft, and repair sets for parts such as the feed pump.

Charging, starting and hitching

Alternators and starter motors keep the AgroPrima running, while push button switches operate items like the work lights. In the cab, gas struts hold the door, front or rear window open. For hitching there are drawbars, drawbar frames and trailer couplings, including ROCKINGER. Exhaust gaskets round off the list.

An alternator that has stopped charging is not always faulty itself. First check whether the charge warning light comes on with the ignition. If it stays dark, the alternator is not being excited and the fault usually lies in the wire or the bulb. After fitting a starter motor, clean all the earth connections or the slow start may come back. A drawbar should slide easily in the rail of its frame, so clean the rail and give it a thin coat of grease to keep the locking reliable. An exhaust gasket is always fitted new, even if the old one still looks intact.

What fits your 6.06

Check the type plate to confirm it is the AgroPrima 6.06, and if in doubt note the number on the old part. Compare that with the reference number shown for the product. With alternators and starter motors that share the same housing shape, this is what prevents a wrong order.

The Deutz-Fahr AgroPrima 6.16 from the same series has its own page with the parts that fit it. Any other Deutz-Fahr tractor can be picked from Deutz-Fahr parts.
