Deutz-Fahr DX 6.50 tractor parts & technical data

More than 250 parts are listed for the Deutz-Fahr DX 6.50, a tractor from the DX 6 series. Trailer couplings, lighting and electrics are some of the groups.

271 parts found for Deutz-Fahr DX 6.50
Show:
Outlet valve new version 3-rings Deutz engine F2L912-BF6L913
Engine types: F2L912, F3L912, F4L912, F6L912, F4L913, F6L913, BF6L913. More
Engine types: F2L912, F3L912, F4L912, F6L912, F4L913, F6L913, BF6L913.
€34,45 €28,47
Tank cap with ventilation, tank collar Ø 106 mm
Filler neck Ø: 106 mm. More
Filler neck Ø: 106 mm.
€32,21 €26,62
Bolt set 2de steering valve M10 x 150 Deutz-Fahr
Technical data: M10 x 150. More
Technical data: M10 x 150.
€26,38 €21,80
Control unit 220 bar, 220 x Ø 58 mm Deutz-Fahr DX 85-160
Technical data: Max. operating pressure: 220 bar, Nominal flow rate: max. 40 l/min., Tightening torque: 25 Nm, Dimensions: 220 x Ø 58 mm. Menke no.: ... More
Technical data: Max. operating pressure: 220 bar, Nominal flow rate: m...
€612,25 €505,99 €563,27 €465,51
You save 8%
Gas strut door 140 N, 600 mm, stroke 150 mm Deutz-Fahr DX 7.10-80
suitable for: Tür. Newtons: 140. A: 600 mm. B: 360 mm. C: 8 mm. D: 8 mm. Form: 2. d1: 8 mm. d2: 18 mm. Stroke: 150 mm. To fit: Door. More
suitable for: Tür. Newtons: 140. A: 600 mm. B: 360 mm. C: 8 mm. D: 8 ...
€84,31 €69,68 €77,57 €64,10
You save 8%
Door lock, right Deutz-Fahr AgroPrima 4.31, DX 7.10
€76,54 €63,26 €70,42 €58,20
You save 8%
Handle right Deutz-Fahr DX 4.10-160, Series DX 4-7
€139,39 €115,20 €128,24 €105,98
You save 8%
Inner ring front left lift arm 75 x 88,6 x 1 mm Deutz-Fahr
Dimensions: 75 x 88.6 x 1 mm. More
Dimensions: 75 x 88.6 x 1 mm.
€49,68 €41,06 €45,71 €37,77
You save 8%
O-ring for oil dipstick 30 x 3,5 mm Deutz-Fahr
Dimensions: 30 x 3.5 mm. More
Dimensions: 30 x 3.5 mm.
€16,79 €13,87
Sealing ring piston 84 x 88 x 1,5 mm Deutz-Fahr
Dimensions: 84 x 88 x 1.5 mm. More
Dimensions: 84 x 88 x 1.5 mm.
€34,64 €28,63
Gas strut door 140 N, 600 mm Deutz-Fahr DX 7.10-80
suitable for: Tür. Newtons: 140. A: 600 mm. B: 360 mm. C: 8 mm. D: 8 mm. Form: 2. To fit: door. More
suitable for: Tür. Newtons: 140. A: 600 mm. B: 360 mm. C: 8 mm. D: 8 ...
€79,39 €65,61 €73,04 €60,36
You save 8%
Temperature warning switch 6 - 24 V, M14 x 1,5 mm, up to 100 °C
Version: Flat head | 6 - 24 V | M14 x 1.5 | Up to max. 100. Connection: Flat head. Thread: M14 x 1.5. Temperature: 40 - 100 °C. More
Version: Flat head | 6 - 24 V | M14 x 1.5 | Up to max. 100. Connection...
€86,14 €71,19 €79,25 €65,49
You save 8%
Pto switch PTO clutch M14 x 1, 12 V / 24 V, make contact
Version: Make contact, mechanical, Thread M14 x 1 with 2 hexagon nuts (AF 19), Operating voltage: 12 V/24 V, Blade terminal. Menke no.: 80804. More
Version: Make contact, mechanical, Thread M14 x 1 with 2 hexagon nuts ...
€33,75 €27,89 €31,05 €25,66
You save 8%
Driver for angle drive / drive shaft
Version: For angle drive. More
Version: For angle drive.
€64,27 €53,12 €59,13 €48,87
You save 8%
Drive shaft 1860 mm, M18 x 1,5 / M22 x 1,5
Version: Thread: M18 x 1.5 / M22 x 1.5. More
Version: Thread: M18 x 1.5 / M22 x 1.5.
€43,69 €36,11 €40,19 €33,22
You save 8%
Push button switch windshield wiper 12/24 V, button yellow, Ø 30 mm
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 5 blade terminals 6.3 x 0.8 (+- 53a- 53- 31b- 31), Dustproof and splashproof, With glass socket ... More
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 5 blade terminal...
€41,28 €34,12 €37,98 €31,39
You save 8%

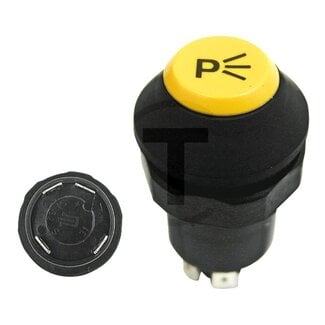

Push button switch marker-/parking light 12/24 V, button yellow
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminals 6.3 x 0.8 (31- S1- S- +), Dustproof and splashproof, With glass socket bulb 12... More
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminal...
€40,73 €33,66 €37,47 €30,97
You save 8%
Push button switch work lamp 12 / 24 V, button yellow, Ø 30 mm
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminals 6.3 x 0.8 (31- S1- S- +), Dustproof and splashproof, With glass socket bulb 12... More
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminal...
€40,96 €33,85 €37,68 €31,14
You save 8%
Relays N/O-contact 12 V / 2x 20 A, 5-pin, with holder, blade terminal
Version: 12 V / 2 x 20 A, with holder, 5-pin, blade terminal. More
Version: 12 V / 2 x 20 A, with holder, 5-pin, blade terminal.
€11,13 €9,19
HELLA Relays relays make contact 12 V, 40 A, 5-pin, 6,3 mm
HELLA
Version: 12 V / 40 A, With bracket, 5-pin, blade terminal 6.3 mm. More
Version: 12 V / 40 A, With bracket, 5-pin, blade terminal 6.3 mm.
€20,33 €16,80
Oil drain valve M18 x 1,5
Thread: M18 x 1.5. More
Thread: M18 x 1.5.
€68,16 €56,33 €62,71 €51,82
You save 8%
Piston set complete Ø 102 mm, collar Ø 124,5 mm, with cooling channel
Dimensions: 3 rings, Ø 102 mm, Gudgeon pin Ø 40 x 80 mm, With cooling channel, Collar Ø 124.5 mm, Combustion chamber Ø 58 mm, Combustion chamber d... More
Dimensions: 3 rings, Ø 102 mm, Gudgeon pin Ø 40 x 80 mm, With coolin...
€300,55 €248,39 €276,51 €228,52
You save 8%
Piston set, complete 4 rings, Ø 102 mm, piston pin Ø 35 x 80 mm
Dimensions: 4 rings, Ø 102 mm, Gudgeon pin Ø 35 x 80 mm, With cooling channel, Combustion chamber Ø 58 mm, Combustion chamber depth 17.6 mm. More
Dimensions: 4 rings, Ø 102 mm, Gudgeon pin Ø 35 x 80 mm, With coolin...
€218,41 €180,50 €200,94 €166,06
You save 8%
Tappet tube spring Fendt, Deutz-Fahr
Engine types: FL912, FL913, FL812, FL712. More
Engine types: FL912, FL913, FL812, FL712.
€7,51 €6,21
Air receiver gasket Fendt, Deutz-Fahr
Engine types: FL712, FL812. More
Engine types: FL712, FL812.
€3,18 €2,62
Valve guide inlet and outlet Fendt, Deutz-Fahr
Engine types: F2L912, F3L912, F4L912, F6L912, F4L913, F6L913, BF6L913. More
Engine types: F2L912, F3L912, F4L912, F6L912, F4L913, F6L913, BF6L913.
€8,10 €6,69
Steering valve dw afgedicht 210 bar, 70 l/min, system SD80
Technical data: Max. operating pressure: 210 bar, Nominal flow rate: max. 70 l/min., Tightening torque: 30 Nm, Connections: M18 x 1.5, Dimensions: 130... More
Technical data: Max. operating pressure: 210 bar, Nominal flow rate: m...
€759,50 €627,69 €698,74 €577,47
You save 8%
Protective ring front right lift arm 85 x 70 x 10 mm Deutz-Fahr
Dimensions: 85 x 70 x 10 mm. More
Dimensions: 85 x 70 x 10 mm.
€34,72 €28,69 €31,94 €26,40
You save 8%
Push button switch main headlights upper 12/24 V, button yellow, Ø 30 mm
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminals 6.3 x 0.8 (31- S1- S- +), Dustproof and splashproof, With glass socket bulb 12... More
Version: 12/24 V, Yellow button, with lock, Ø 30 mm, 4 blade terminal...
€39,77 €32,87 €36,59 €30,24
You save 8%
Rear light 158 x 64 x 51 mm, 12 V, left, number plate light
Nominal voltage: 12 V. Installation location: Left. Bulb: P21W, R10W. Bulbs included: No. Light function: Indicator light, rear light, brake light, nu... More
Nominal voltage: 12 V. Installation location: Left. Bulb: P21W, R10W. ...
€70,46 €58,23 €64,82 €53,57
You save 8%
Showing 241 - 271 of 271

Deutz-Fahr DX 6.50 parts: cab, hitch, engine and hydraulics

On a DX 6.50 with a lot of hours behind it, the first complaints usually come from the cab. A door lock that no longer catches, a gas strut that will not hold the rear window, a push button for the work lamps that sticks. This page covers those small jobs and the larger ones too, with more than 250 Deutz-Fahr DX 6.50 parts.

In the cab

There are push button switches, gas struts for the door, front window and rear window, door locks and air suspended tractor seats. Fit a gas strut with the piston rod pointing down. That keeps the seal inside bathed in oil, and the strut holds its force for longer.

At the back

For towing there are automatic drawbars and drawbar frames from makers such as Walterscheid and ROCKINGER. On a hitch that has seen years of use, check the locking mechanism and the coupling pin for wear as well, not just the jaw.

Engine, lift and brakes

  • Crankshaft seals for both ends of the crank.
  • Piston ring sets and seal kits for an engine rebuild.
  • Sealing rings for the lift shaft and a gasket for the lift housing.
  • Seals for the hydraulic pump and shims for setting end play.
  • Repair sets for the brake cylinder.
  • Vented tank caps, including lockable versions.

Before fitting a brake cylinder repair set, look at the cylinder bore. If it is scored or pitted, new seals will not stop the leak, and the whole cylinder needs replacing instead. With the crankshaft seals, take care not to fit the new seal on the exact groove the old lip has worn into the shaft.

When the engine dies with fuel in the tank

A blocked vent in the tank cap lets vacuum build up as fuel is drawn off. After a while the engine starves and stops, even with a full tank. Before you suspect the lift pump, try running with the cap loosened. If the engine keeps going, a new vented cap solves it.

Finding the matching part

Your type plate should read DX 6.50. For seals, shims and sealing rings it all comes down to size, and the quickest way to get that is from the old part, which often has a reference number moulded or stamped into it. Besides GRANIT, Walterscheid and ROCKINGER, you will find PROBOSS and GRAMMER here. Other tractors from the brand are on Deutz-Fahr parts.
